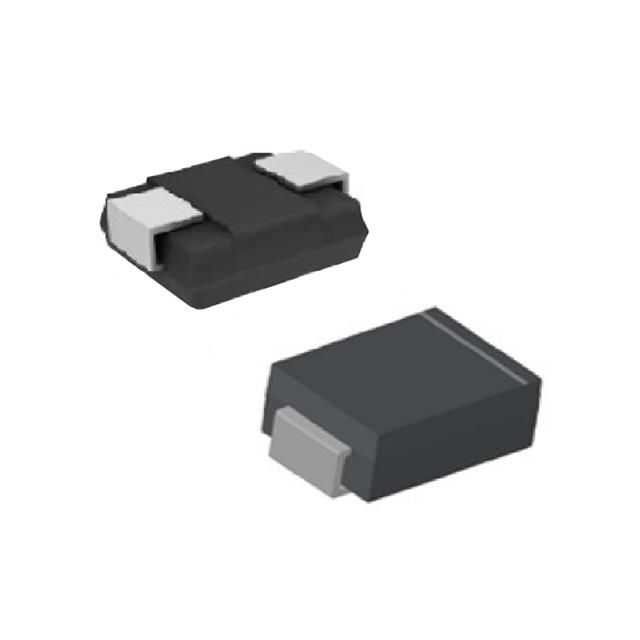

SMBJ16CA-A
ActiveYenyo Technology
TVS 600W DIODE 16VWM BI-DIR DO-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMBJ16CA-A
ActiveYenyo Technology
TVS 600W DIODE 16VWM BI-DIR DO-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMBJ16CA-A |
|---|---|
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 23.08 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Type | Zener |
| Voltage - Clamping (Max) @ Ipp [Max] | 26 V |
| Voltage - Reverse Standoff (Typ) | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20 | $ 0.32 | |
| 40 | $ 0.30 | |||
| 60 | $ 0.28 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| 2000 | $ 0.14 | |||
| 3000 | $ 0.13 | |||
Description
General part information
SMBJ16CA-A
26V Clamp 23.08A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
