10138
ActiveCarclo Technical Plastics

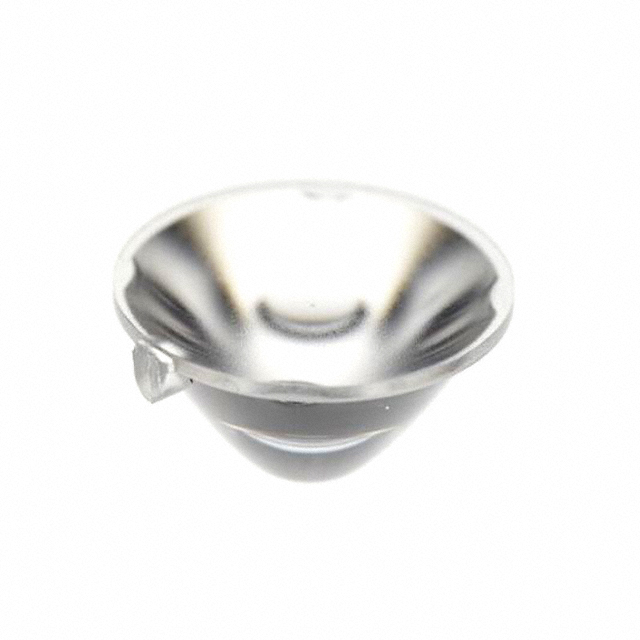

LENS CLEAR 9-25DEG SPOT SNAP-IN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10138
ActiveCarclo Technical Plastics
LENS CLEAR 9-25DEG SPOT SNAP-IN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10138 |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Everlight, Toshiba, Led Engin, Cree, Seoul, Avago, Samsung, Stanley, Osram, Luminus, Lumileds, Nichia |
| Lens Size [diameter] | 20 mm |
| Lens Transparency | Diffused |
| Material | Polycarbonate |
| Mounting Type | Snap-In |
| Number of LEDs | 1 |
| Optical Pattern | Spot |
| Type | Holder Required, Lens Only |
| Viewing Angle [Max] | 25 ° |
| Viewing Angle [Min] | 9 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.49 | |
| Tray | 1 | $ 2.27 | ||
| 48 | $ 1.35 | |||
| 144 | $ 1.21 | |||
| 528 | $ 1.08 | |||
| 1008 | $ 1.03 | |||
| 2016 | $ 0.99 | |||
| 5040 | $ 0.94 | |||
| 10032 | $ 0.90 | |||
Description
General part information
10138
Lens Only, Holder Required Clear 9° ~ 25° Spot Snap-In
