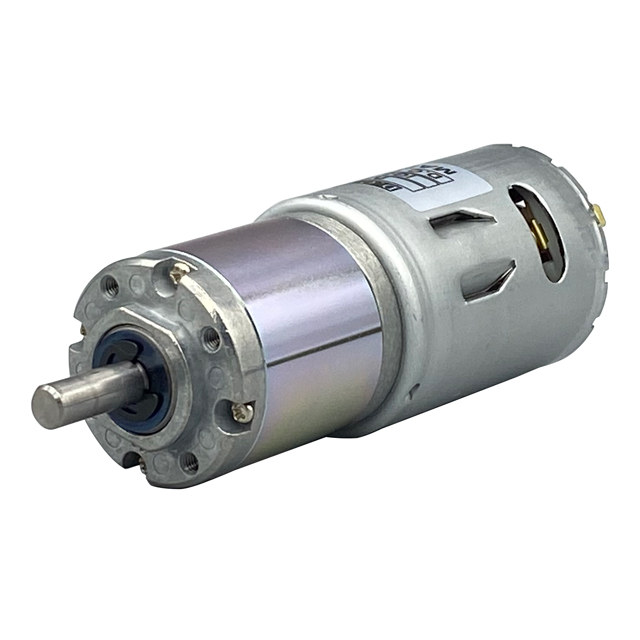

32MM PLANETARY GEAR MOTOR - BRUS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-I-81445-100
ActiveISL Products International
32MM PLANETARY GEAR MOTOR - BRUS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81445-100 |
|---|---|
| Diameter - Shaft [diameter] | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in |
| Gear Reduction Ratio | 100 |
| Length - Shaft and Bearing [x] | 3.303 " |
| Length - Shaft and Bearing [x] | 83.9 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 18 mm |
| Mounting Hole Spacing | 0.709 in |
| Power - Rated | 12 W |
| RPM | 58 RPM |
| Size / Dimension [diameter] | 1.26 " |
| Size / Dimension [diameter] | 32 mm |
| Termination Style | Quick Connect |
| Torque - Max Momentary (oz-in / mNm) | 536.05 oz-in |
| Torque - Max Momentary (oz-in / mNm) | 3785.4 mNm |
| Torque - Rated (oz-in / mNm) | 250 oz-in |
| Torque - Rated (oz-in / mNm) | 1765 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 0.717 lb |
| Weight | 325 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 153.25 | |
| 10 | $ 148.75 | |||
| 100 | $ 103.09 | |||
Description
General part information
MOT-I-81445-100
Brushed DC Motor Gearmotor 58 RPM 12W 12VDC
