S45-1100
ActiveSimply45

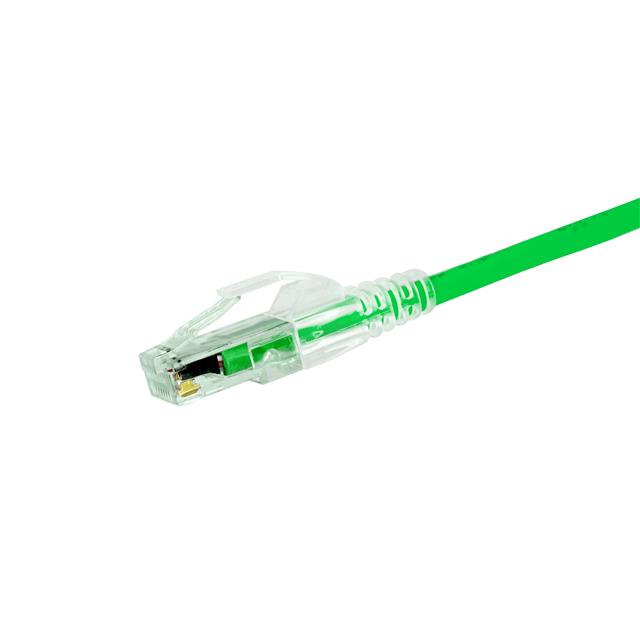

MODULAR PLUG CAT6 UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
S45-1100
ActiveSimply45
MODULAR PLUG CAT6 UNSHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S45-1100 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Green |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Housing Material | Polycarbonate (PC) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6a |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 30 VAC, 42 VDC |
| Wire Gauge | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Canister | 1 | $ 46.30 | |
Description
General part information
S45-1100
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6a IDC
Documents
Technical documentation and resources
No documents available
