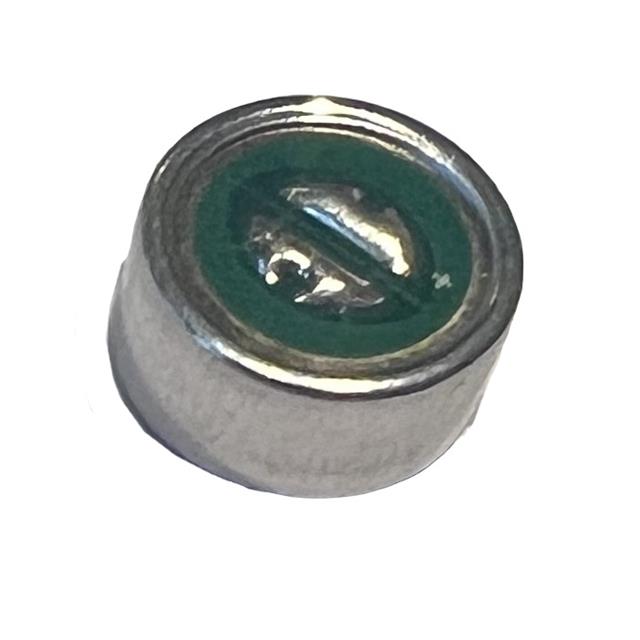

TM141044
ActiveTop Shelf Acoustics, LLC
OMNI MICROPHONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM141044
ActiveTop Shelf Acoustics, LLC
OMNI MICROPHONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM141044 |
|---|---|
| Current - Supply | 75 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] | 4.5 mm |
| Height (Max) [Max] | 0.177 in |
| Impedance | 1.5 kOhms |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 60 dB |
| Sensitivity | -40 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 9.7 mm |
| Size / Dimension [diameter] | 0.382 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.65 | |
Description
General part information
TM141044
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-40dB ±3dB) Solder Pads
