C1352A.12.10
ActivePrysmian Group

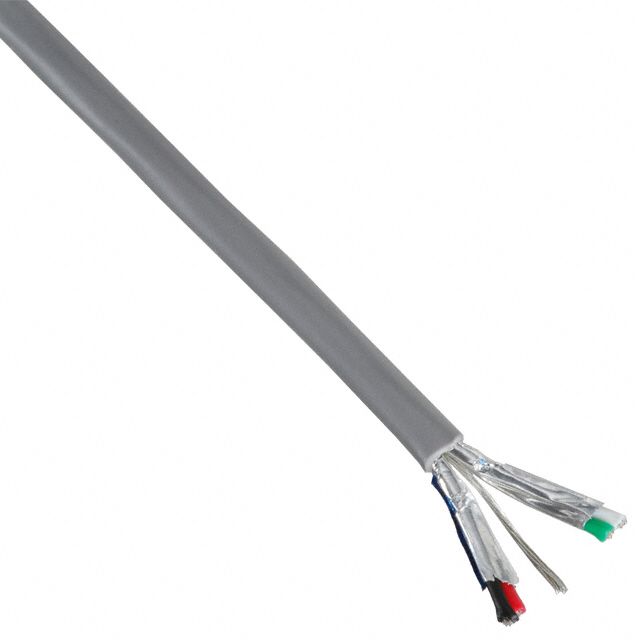

MULTI-PAIR 4COND 22AWG GRAY 100'
Deep-Dive with AI
Search across all available documentation for this part.
C1352A.12.10
ActivePrysmian Group
MULTI-PAIR 4COND 22AWG GRAY 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1352A.12.10 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.06 mm |
| Jacket (Insulation) Diameter [diameter] | 0.16 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Gray |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.00 | |
| 5 | $ 77.72 | |||
| 10 | $ 60.45 | |||
Description
General part information
C1352A.12.10
4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
