A33230LLHALT-XZ-S-AR-03
ActiveAllegro MicroSystems
3D HALL-EFFECT SENSOR IC WITH SI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A33230LLHALT-XZ-S-AR-03
ActiveAllegro MicroSystems
3D HALL-EFFECT SENSOR IC WITH SI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A33230LLHALT-XZ-S-AR-03 |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position |
| Mounting Type | Surface Mount |
| Output | Analog Voltage |
| Output Signal | Sine, Cosine |

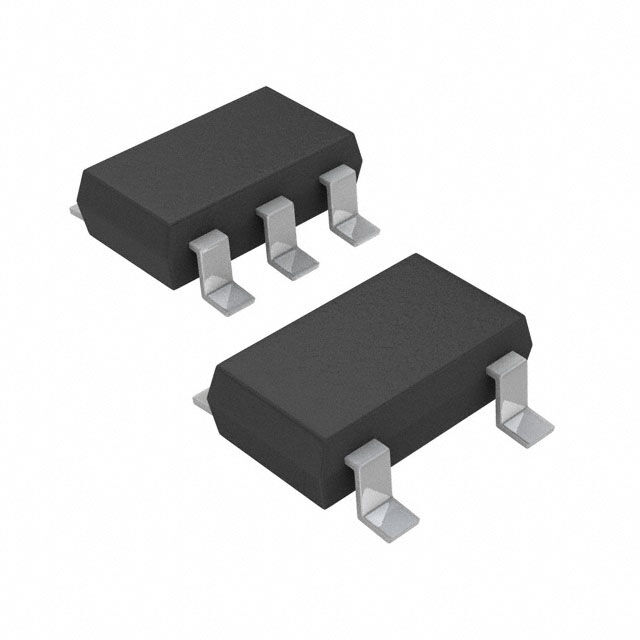

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | SOT-23W-5 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 5 | $ 1.47 | |||
| 10 | $ 1.37 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.07 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.84 | |||
| Digi-Reel® | 1 | $ 1.75 | ||
| 5 | $ 1.47 | |||
| 10 | $ 1.37 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.07 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.84 | |||
| Tape & Reel (TR) | 3000 | $ 0.75 | ||
| 6000 | $ 0.70 | |||
| 9000 | $ 0.67 | |||
| 15000 | $ 0.64 | |||
Description
General part information
A33230LLHALT-XZ-S-AR-03
Hall Effect Sensor Rotary Position External Magnet, Not Included
