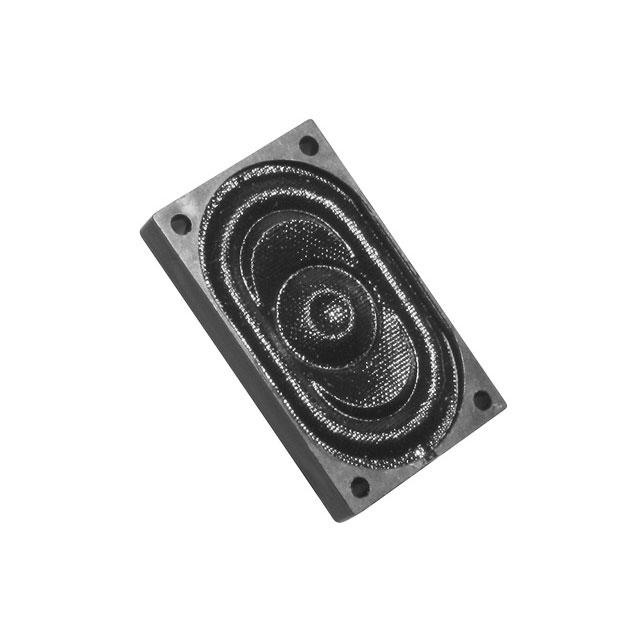

SC240908-1
ActiveDB Unlimited
SPEAKER 8OHM 500MW TOP PORT 95DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC240908-1 |
|---|---|
| Efficiency - dBA | 95 dBA |
| Efficiency - Testing | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 900 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 900 Hz |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Impedance | 8 Ohms |
| Material - Cone | Cloth |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 500 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 24.9 mm |
| Size / Dimension [x] | 0.98 " |
| Size / Dimension [y] | 0.587 in |
| Size / Dimension [y] | 14.9 mm |
| Technology | Magnetic |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.89 | |
| 10 | $ 3.17 | |||
| 25 | $ 2.92 | |||
| 40 | $ 2.81 | |||
| 80 | $ 2.64 | |||
| 230 | $ 2.41 | |||
| 440 | $ 2.27 | |||
| 945 | $ 2.16 | |||
Description
General part information
SC240908-1
8 Ohms General Purpose Speaker 500 mW 900 Hz ~ 20 kHz Top Rectangular
