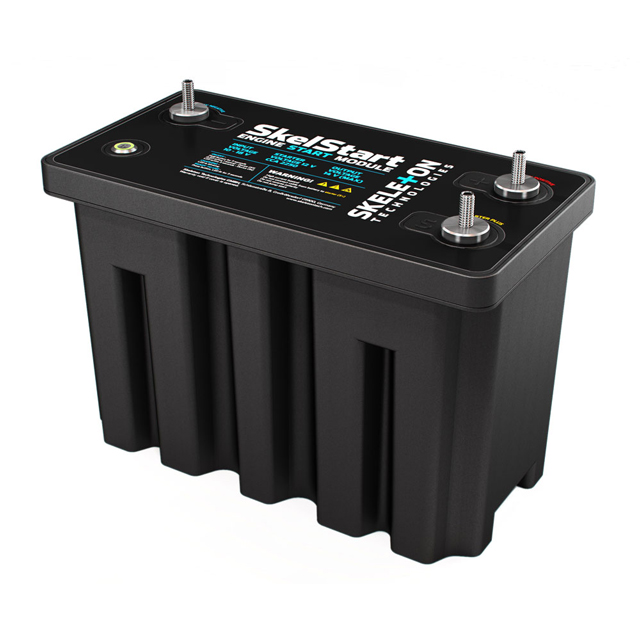

SKELSTART 12V
UnknownSkeleton Technologies GmbH
CAP 1280F 12V CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKELSTART 12V
UnknownSkeleton Technologies GmbH
CAP 1280F 12V CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKELSTART 12V |
|---|---|
| Capacitance | 1280 F |
| ESR (Equivalent Series Resistance) | 0.56 mOhm |
| Height - Seated (Max) [Max] [z] | 9.488 in |
| Height - Seated (Max) [Max] [z] | 241 mm |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 12.913 in |
| Size / Dimension [x] | 328 mm |
| Size / Dimension [y] | 171 mm |
| Size / Dimension [y] | 6.732 in |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1229.87 | |
Description
General part information
SKELSTART 12V
1280 F (EDLC) Supercapacitor 12 V Module 0.56mOhm
Documents
Technical documentation and resources
