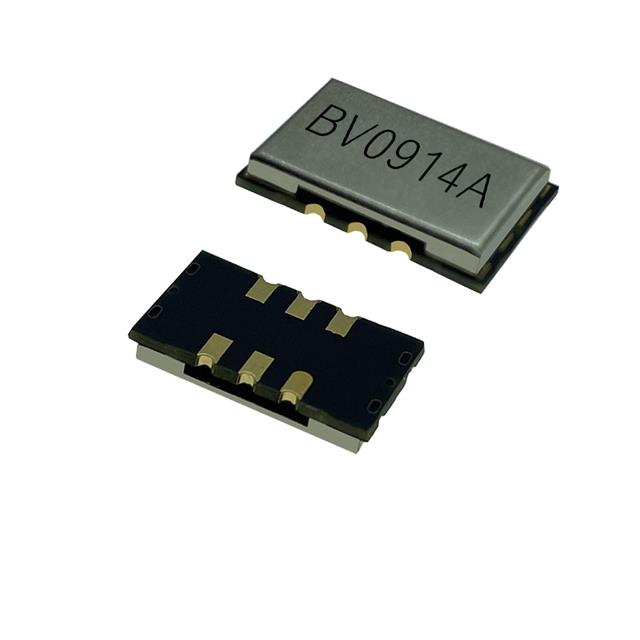

BV0914AD3I155D030N100
ActiveXTALTQ
XTAL OSC VCXO 100.0000MHZ LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BV0914AD3I155D030N100
ActiveXTALTQ
XTAL OSC VCXO 100.0000MHZ LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BV0914AD3I155D030N100 |
|---|---|
| Absolute Pull Range (APR) | 30 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 30 mA |
| Frequency | 100 MHz |
| Frequency Stability | 15 ppm |
| Function | Amplitude Control |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 14.65 mm |
| Size / Dimension [x] | 0.577 in |
| Size / Dimension [y] | 9.35 mm |
| Size / Dimension [y] | 0.368 in |
| Type | VCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 28.18 | |
| 25 | $ 27.50 | |||
Description
General part information
BV0914AD3I155D030N100
100 MHz VCXO LVDS Oscillator 3.3V Amplitude Control 6-SMD, No Lead
