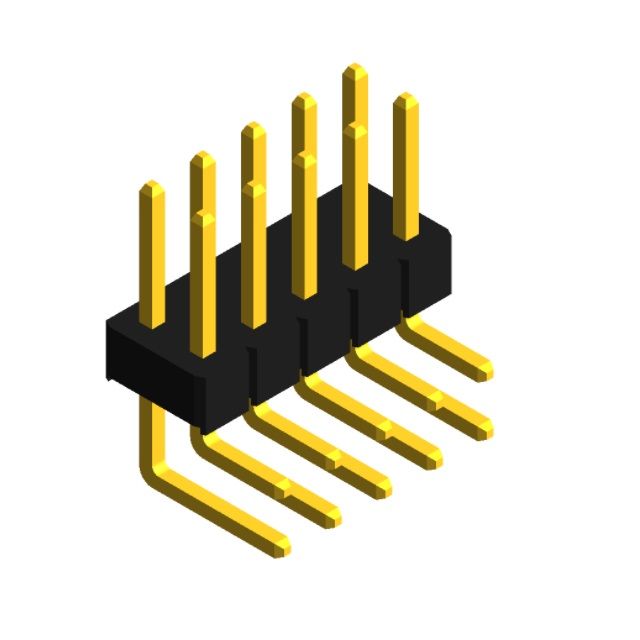

PHED-RS010G1ABOGA-C006

Active

SUPERIOR TECH

MALE HEADER RIGHT ANGLE THROUGH

Search across all available documentation for this part.

Active

SUPERIOR TECH

MALE HEADER RIGHT ANGLE THROUGH

Technical Specifications

Parameters and characteristics for this part

Specification	PHED-RS010G1ABOGA-C006

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post [x]	6 mm
Contact Length - Post [x]	0.236 "
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Plastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.118 in
Overall Contact Length	3 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
