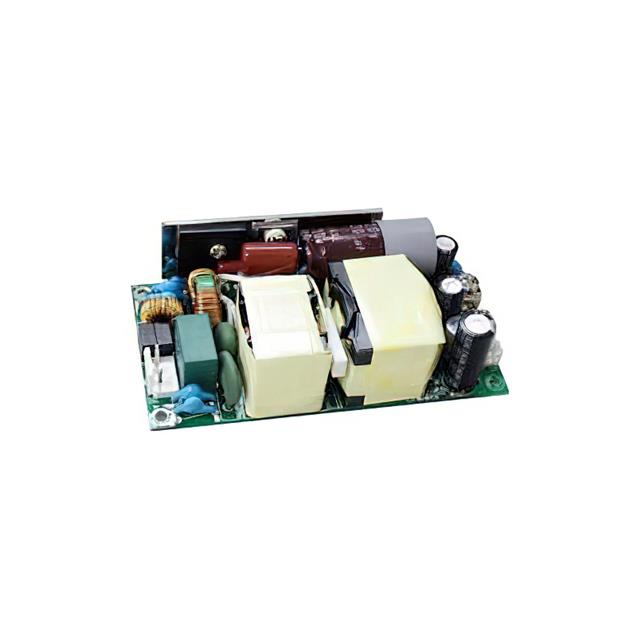

HD240O-148
ActiveDigital Power Corporation
AC/DC CONVERTER 48V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD240O-148
ActiveDigital Power Corporation
AC/DC CONVERTER 48V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD240O-148 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, IEC |
| Current - Output 1 | 3.33 A |
| Efficiency | 94 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 101.9 mm |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [y] | 1.02 " |
| Size / Dimension [y] | 52.1 mm |
| Size / Dimension [z] | 27.6 mm |
| Size / Dimension [z] | 1.09 " |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.33 | |
Description
General part information
HD240O-148
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
