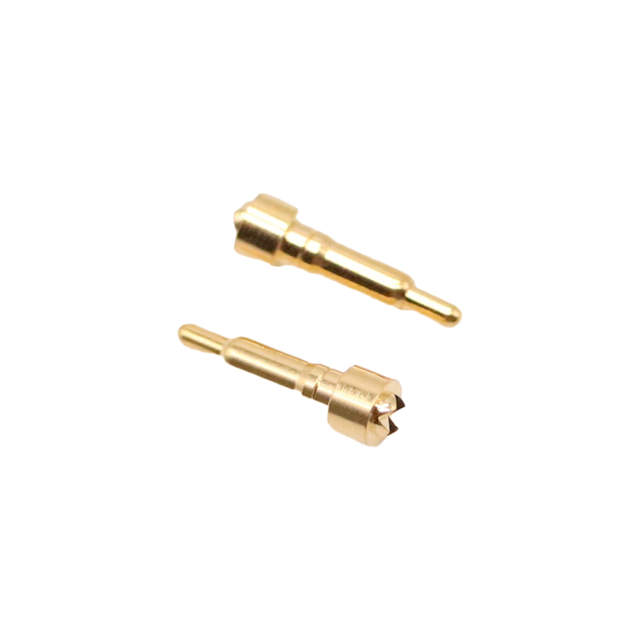

S-J-4013FCW-1-00-0000
ActiveYokowo
CONTACT 1POS FLOATING GOLD
Deep-Dive with AI
Search across all available documentation for this part.
S-J-4013FCW-1-00-0000
ActiveYokowo
CONTACT 1POS FLOATING GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S-J-4013FCW-1-00-0000 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Features | Crown Head |
| Mating Cycles | 10000 |
| Maximum Working Height [Max] | 5 mm |
| Maximum Working Height [Max] | 0.197 in |
| Minimum Working Height [Min] | 0.174 in |
| Minimum Working Height [Min] | 4.42 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Plunger Size | 0.024 in |
| Plunger Size | 0.6 mm |
| Plunger Size [diameter] | Dia |
| Recommended Working Height [z] | 4.71 mm |
| Recommended Working Height [z] | 0.185 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.99 | |
| 100 | $ 2.96 | |||
Description
General part information
S-J-4013FCW-1-00-0000
Contact Spring Through Hole
Documents
Technical documentation and resources
No documents available
