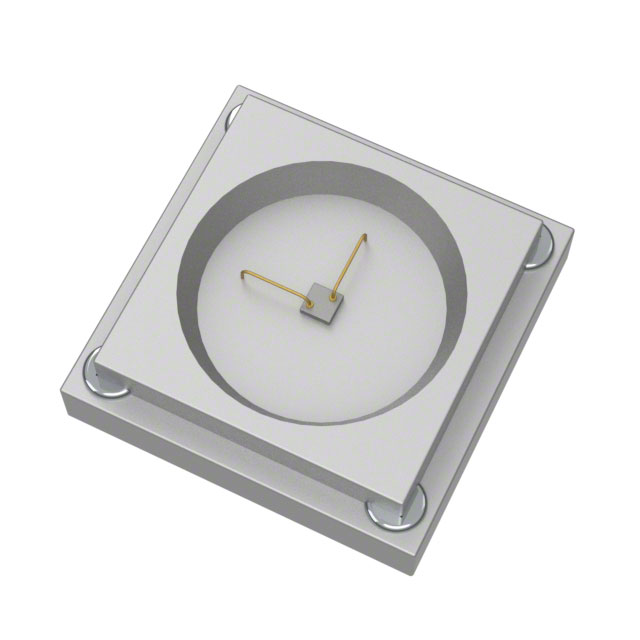

GUVB-S31GD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 220-320NM 1414
Deep-Dive with AI
Search across all available documentation for this part.
GUVB-S31GD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 220-320NM 1414
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GUVB-S31GD |
|---|---|
| Active Area | 0.08 mm˛ |
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) | 1 nA |
| Diode Type | Schottky |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Responsivity @ nm | 0.15 A/W |
| Spectral Range [Max] [x] | 320 nm |
| Spectral Range [Min] [x] | 220 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 17.86 | |
| 10 | $ 14.14 | |||
| 25 | $ 13.40 | |||
| 100 | $ 11.54 | |||
| 500 | $ 10.79 | |||
| Digi-Reel® | 1 | $ 17.86 | ||
| 10 | $ 14.14 | |||
| 25 | $ 13.40 | |||
| 100 | $ 11.54 | |||
| 500 | $ 10.79 | |||
| Tape & Reel (TR) | 1500 | $ 10.24 | ||
Description
General part information
GUVB-S31GD
Photodiode 1414 (3535 Metric)
Documents
Technical documentation and resources
No documents available
