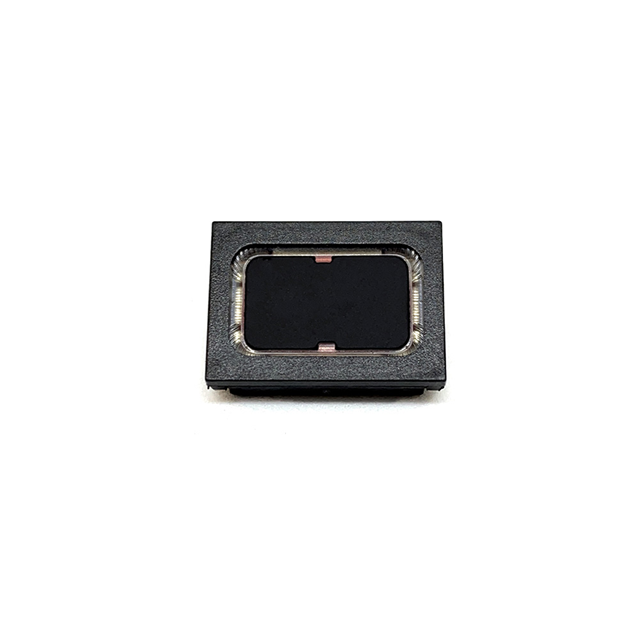

OWS-131845TA-8D
ObsoleteOle Wolff Electronics Inc
SPEAKER 8OHM 1W TOP PORT 100DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OWS-131845TA-8D
ObsoleteOle Wolff Electronics Inc
SPEAKER 8OHM 1W TOP PORT 100DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWS-131845TA-8D |
|---|---|
| Distortion Rating | 5 % |
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing | 1W/10cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone [custom] | Plastic |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | IoT Speaker |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OWS-131845TA-8D
8 Ohms IoT Speaker Speaker 1 W 100 Hz ~ 20 kHz Top Rectangular
