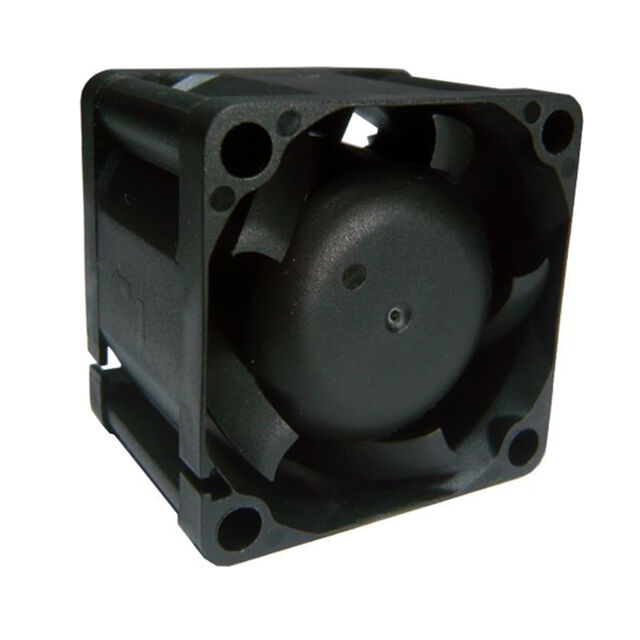

XYW03628012BSS-12
ActiveYS TECH USA
FAN AXIAL 36X28MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XYW03628012BSS-12 |
|---|---|
| Air Flow | 25 CFM |
| Air Flow | 0.7 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 1 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 65000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 63 dB |
| Power (Watts) | 12 W |
| RPM | 23000 RPM |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [z] | 36 mm |
| Static Pressure | 647.7 Pa |
| Static Pressure | 2.6 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.55 | |
| 20 | $ 19.60 | |||
| 200 | $ 17.45 | |||
| 500 | $ 13.10 | |||
| 1000 | $ 12.10 | |||
| 5000 | $ 11.20 | |||
Description
General part information
XYW03628012BSS-12
Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads
