VA-01-FZSP-FZSJ-196.9
ActiveVedtronics
CBL ASSY FAKRA PLUG-JACK 16.4'
Deep-Dive with AI
Search across all available documentation for this part.
VA-01-FZSP-FZSJ-196.9
ActiveVedtronics
CBL ASSY FAKRA PLUG-JACK 16.4'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VA-01-FZSP-FZSJ-196.9 |
|---|---|
| 1st Connector | Fakra Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded, Z Code |
| Frequency - Max [Max] | 3 GHz |
| Length | 196.9 in |
| Length | 5 m |
| Length | 16.4 ft |
| Overall Impedance | 50 Ohms |
| Style | Fakra to Fakra |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 44.00 | |
Description
General part information
VA-01-FZSP-FZSJ-196.9

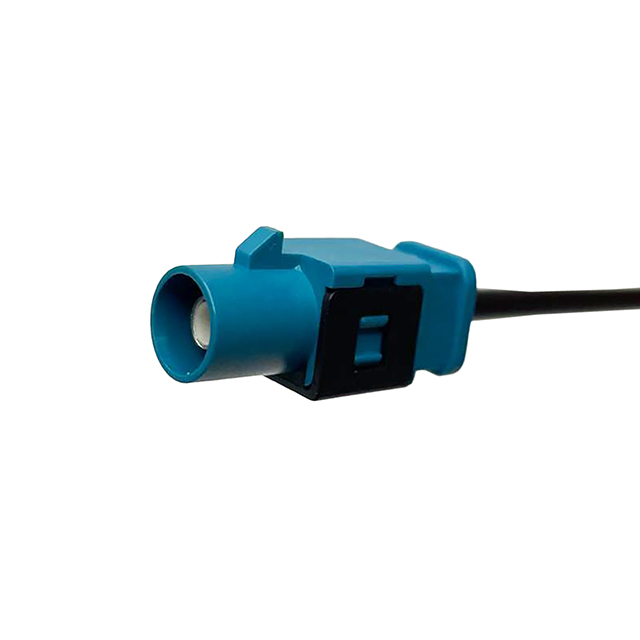

Cable Assembly Coaxial Fakra to Fakra RG-174 196.9" (5.0m) 16.4'
Documents
Technical documentation and resources
No documents available
