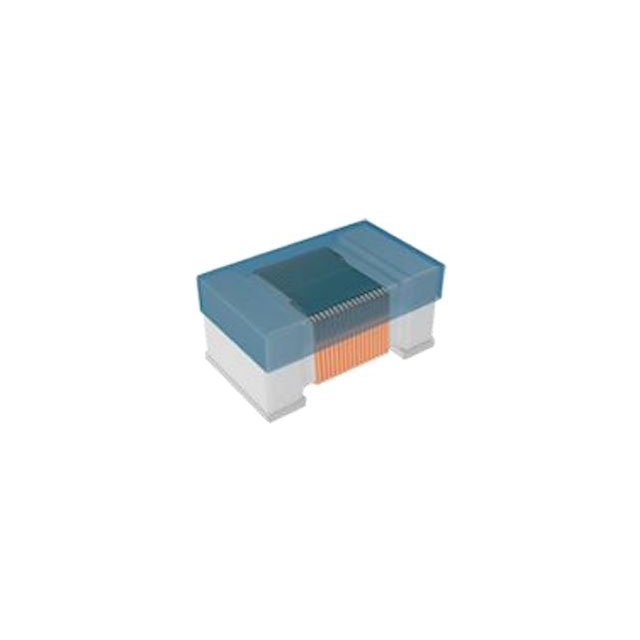

SDWL1608C6N2CSTFM01
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 6.2NH 750MA 82MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDWL1608C6N2CSTFM01
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 6.2NH 750MA 82MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDWL1608C6N2CSTFM01 |
|---|---|
| Current Rating (Amps) | 750 mA |
| DC Resistance (DCR) | 82 mOhm |
| Frequency - Self Resonant | 6 GHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 6.2 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 35, 250 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.9 mm |
| Size / Dimension [y] | 0.035 in |
| Tolerance | 0.2 nH |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.10 | |
Description
General part information
SDWL1608C6N2CSTFM01
6.2 nH Unshielded Drum Core, Wirewound Inductor 750 mA 82mOhm Max 0603 (1608 Metric)
