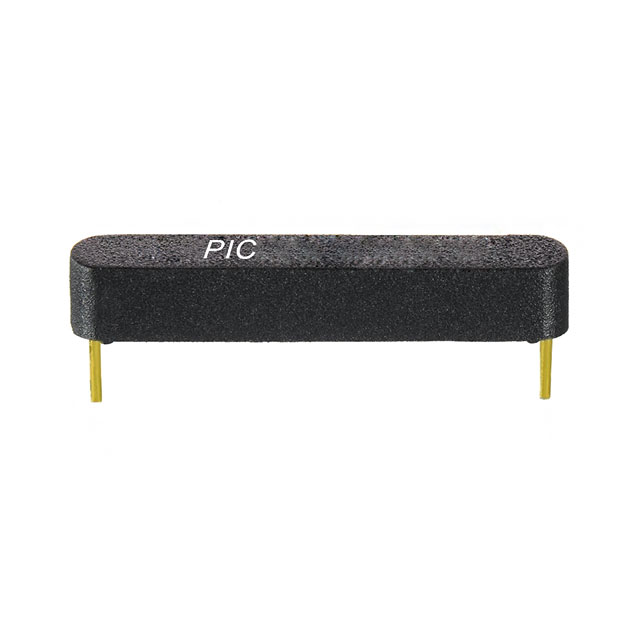

MS-107-3-3
ActivePIC GmbH
SWITCH REED SPST-NO 700MA 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS-107-3-3
ActivePIC GmbH
SWITCH REED SPST-NO 700MA 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS-107-3-3 |
|---|---|
| Circuit | SPST-NO |
| Current - Carry | 1 A |
| Current - Switching | 700 mA |
| Height Above Board [z] | 3.2 mm |
| Height Above Board [z] | 0.126 in |
| Length - Overall [x] | 0.776 in |
| Length - Overall [x] | 19.7 mm |
| Mounting Type | Through Hole |
| Operate Range [Max] | 25 AT |
| Operate Range [Min] | 20 AT |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 10 W |
| Release Range | 4 AT |
| Release Time | 0.3 ms |
| Size - Body [x] | 0.776 " |
| Size - Body [x] | 19.7 mm |
| Size - Body [y] | 2.8 mm |
| Size - Body [y] | 0.11 in |
| Size - Body [z] | 3.2 mm |
| Size - Body [z] | 0.126 in |
| Termination Style | PC Pin |
| Type | Molded Body Reed |
| Voltage - Switching AC | 130 V |
| Voltage - Switching DC | 180 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.53 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.27 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 1.01 | |||
| 2500 | $ 0.95 | |||
| 5000 | $ 0.91 | |||
Description
General part information
MS-107-3-3
Molded Body Reed Switch SPST-NO 20 ~ 25AT Operate Range 10W 700mA (AC/DC) 130 V Through Hole
