NPXH0901E221MJTM
ActiveYmin

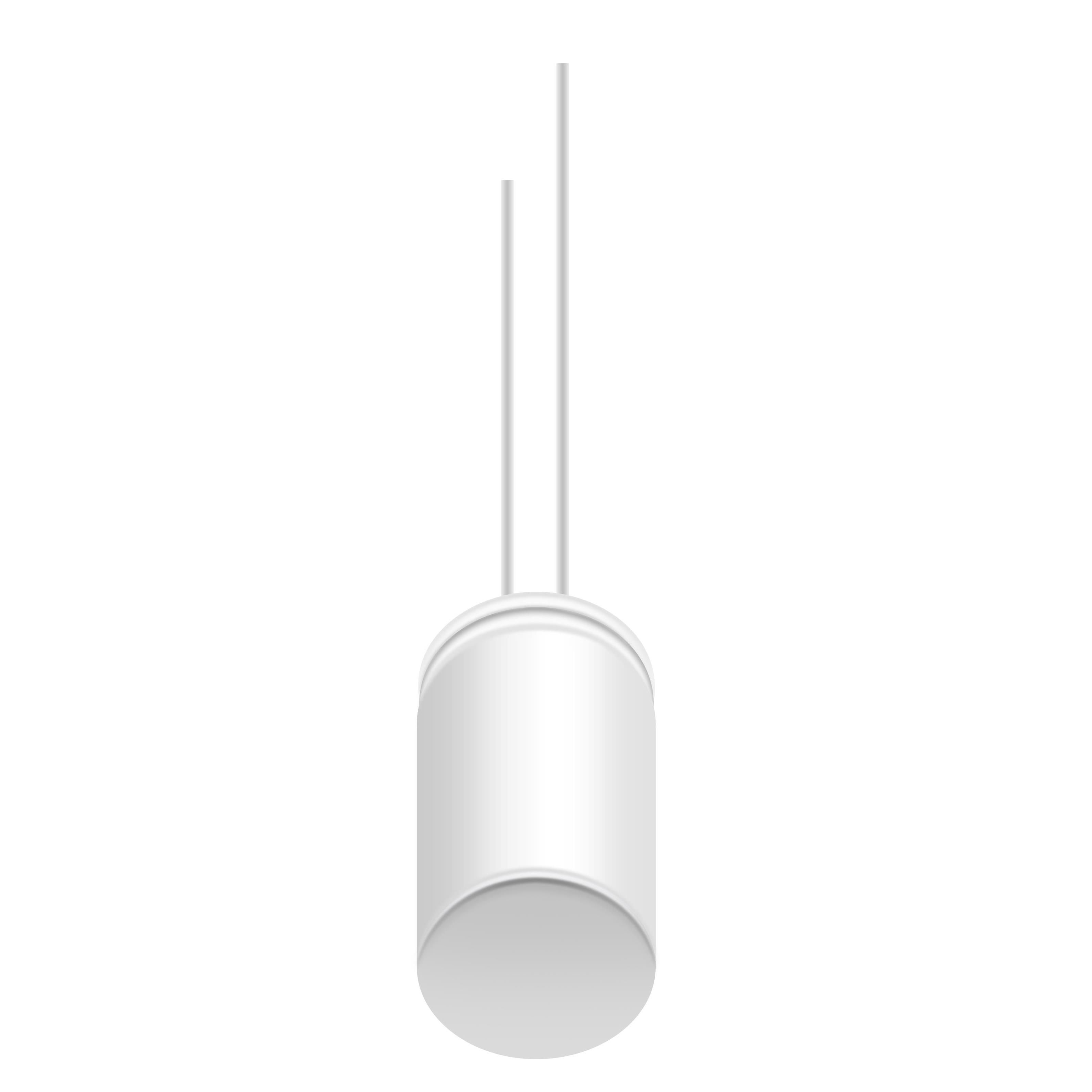

CAP ALUM POLY 220UF 20% 25V TH
Deep-Dive with AI
Search across all available documentation for this part.
NPXH0901E221MJTM
ActiveYmin
CAP ALUM POLY 220UF 20% 25V TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NPXH0901E221MJTM |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 20 mOhms |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Impedance | 20 mOhms |
| Lead Spacing | 0.098 in |
| Lead Spacing | 2.5 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Ripple Current @ High Frequency | 3.2 A |
| Ripple Current @ Low Frequency | 160 mA |
| Size / Dimension | 5.5 mm |
| Size / Dimension [diameter] | 0.216 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.34 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.14 | |||
| 5000 | $ 0.13 | |||
Description
General part information
NPXH0901E221MJTM
220 µF 25 V Aluminum - Polymer Capacitors Radial, Can 20mOhm 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
