CBG-SALMGT-SARF3GT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA PLUG-JACK 10"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBG-SALMGT-SARF3GT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA PLUG-JACK 10"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-SALMGT-SARF3GT-10IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 10 in |
| Length | 254 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.10 | |
| 10 | $ 16.10 | |||
| 25 | $ 15.20 | |||
| 50 | $ 14.40 | |||
| 100 | $ 13.68 | |||
| 250 | $ 12.44 | |||
| 500 | $ 11.40 | |||
| 1000 | $ 10.52 | |||
Description
General part information
CBG-SALMGT-SARF3GT-10IN

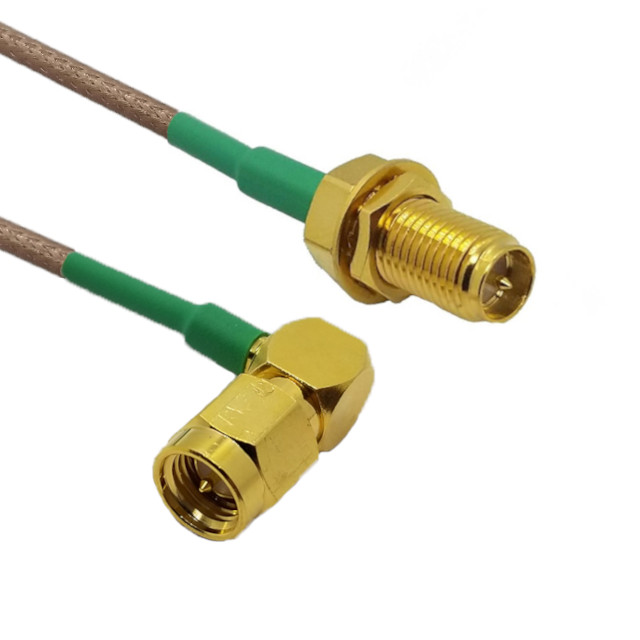

Cable Assembly Coaxial RP-SMA to SMA RG-178 10.000" (254.00mm)
