SZ05S+B+P1814
ActiveRadian

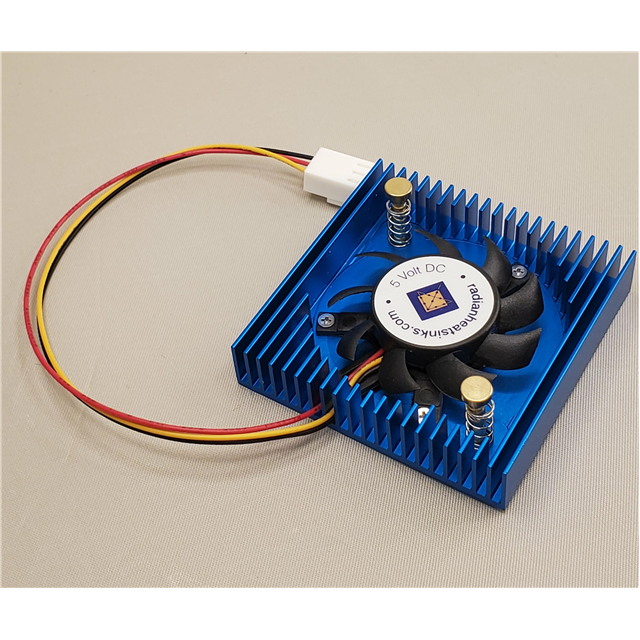

50MM AL PCI FANSINK 5V+BRASS PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZ05S+B+P1814
ActiveRadian
50MM AL PCI FANSINK 5V+BRASS PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZ05S+B+P1814 |
|---|---|
| Attachment Method | Push Pin |
| Length [x] | 1.969 in |
| Length [x] | 50 mm |
| Material | Aluminum |
| Package Cooled | PCI Express™ |
| Shape | Square, Pin Fins |
| Thermal Resistance @ Natural | 2.2 °C/W |
| Type | Top Mount |
| Width [x] | 1.97 in |
| Width [x] | 50 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 34.15 | |
Description
General part information
SZ05S+B+P1814
Heat Sink PCI Express™ Aluminum Top Mount
Documents
Technical documentation and resources
