39260FEX022A22
ActiveElettrotek Kabel North America

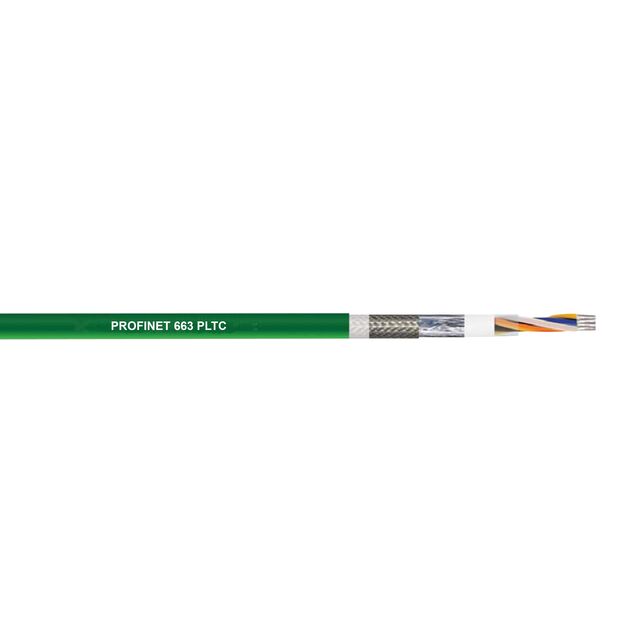

PROFINET CABLE 663 CULUS/PLTC/CM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
39260FEX022A22
ActiveElettrotek Kabel North America
PROFINET CABLE 663 CULUS/PLTC/CM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 39260FEX022A22 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Tinned |
| Features | Oil Resistant, UV Resistant, Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 6.6 mm |
| Jacket (Insulation) Diameter [diameter] | 0.26 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Green |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -5 °C |
| Ratings | UL Style 13 |
| Shield Material | Copper, Tinned, Plastic Laminated Aluminum Foil |
| Shield Type | Foil, Braid |
| Usage | Industrial, Data |
| Voltage | 600 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 2.79 | |
Description
General part information
39260FEX022A22
4 (2 Pair) Conductor Multi-Pair, Cat5e Cable Green 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
