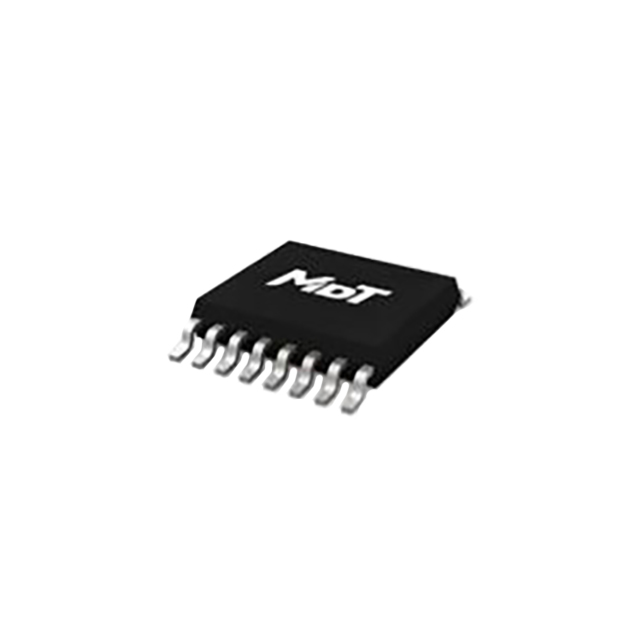

TMR3105AP

Active

MULTIDIMENSION

TMR SENSOR ANGLE HIGH-R 360DEG

Search across all available documentation for this part.

Active

MULTIDIMENSION

TMR SENSOR ANGLE HIGH-R 360DEG

Technical Specifications

Parameters and characteristics for this part

Specification	TMR3105AP

Actuator Type	External Magnet, Not Included
For Measuring	Rotary, Angle
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	SPI
Output Signal	Clockwise Increase, Programmable, Counterclockwise Increase
Package / Case	16-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Supplier Device Package	16-TSSOP
Technology	Magnetoresistive
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Magnetoresistive Sensor Angle, Rotary External Magnet, Not Included SMD (SMT) Tab
