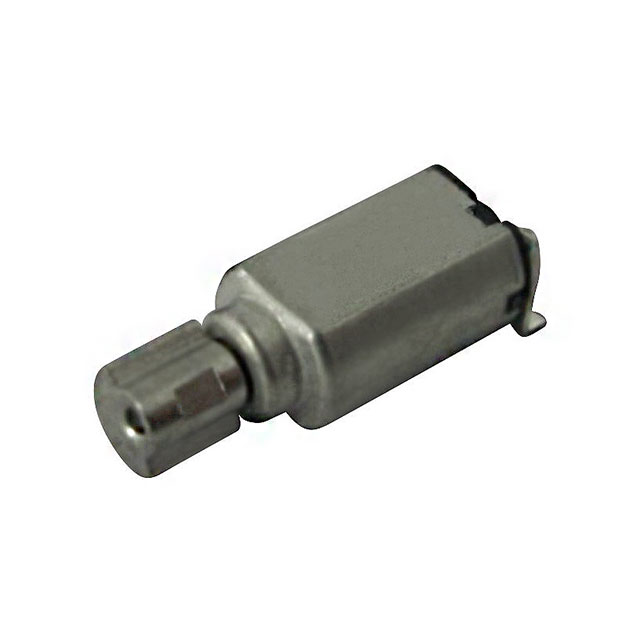

VZ30C1T8460002L
ActiveVybronics Inc
VIBRATION MOTOR 15K RPM 0.39G
Deep-Dive with AI
Search across all available documentation for this part.
VZ30C1T8460002L
ActiveVybronics Inc
VIBRATION MOTOR 15K RPM 0.39G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VZ30C1T8460002L |
|---|---|
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 0.146 in |
| Length - Shaft and Bearing [x] | 3.7 mm |
| Motor Type | Brushed |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 15000 RPM |
| Size / Dimension [diameter] | 0.158 " |
| Size / Dimension [diameter] | 4 mm |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.20 | |
| 5 | $ 3.03 | |||
| 10 | $ 2.94 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.61 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.24 | |||
| Digi-Reel® | 1 | $ 3.20 | ||
| 5 | $ 3.03 | |||
| 10 | $ 2.94 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.61 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.24 | |||
| Tape & Reel (TR) | 1000 | $ 2.10 | ||
Description
General part information
VZ30C1T8460002L
Brushed DC Motor Vibration, ERM 15000 RPM 2.7VDC
