93114
ActiveMISCO

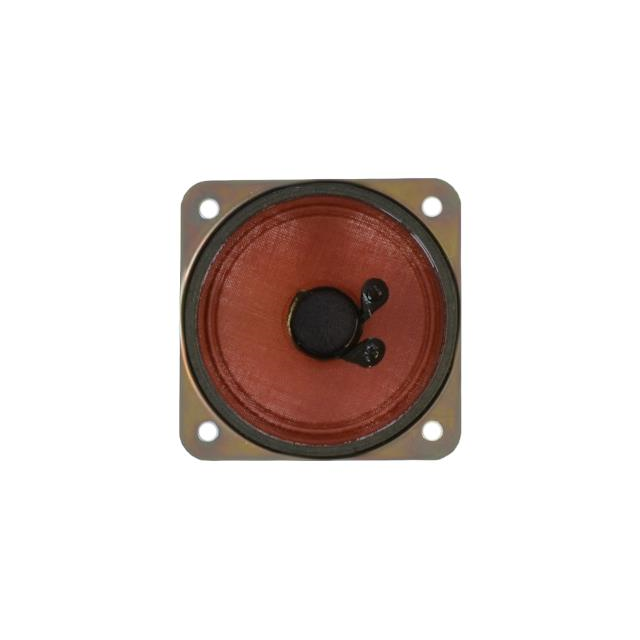

3" VOICE RANGE SPEAKER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
93114
ActiveMISCO
3" VOICE RANGE SPEAKER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 93114 |
|---|---|
| Efficiency - dBA | 87 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 341 Hz |
| Frequency Range [Max] | 7 kHz |
| Frequency Range [Min] | 250 Hz |
| Impedance | 8 Ohms |
| Ingress Protection | Waterproof |
| Material - Cone | Cloth |
| Material - Magnet | Ferrite |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Port Location | Top |
| Power - Max [Max] | 12 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 3.012 " |
| Size / Dimension [x] | 76.51 mm |
| Size / Dimension [y] | 76.51 mm |
| Size / Dimension [y] | 3.012 " |
| Technology | Magnetic |
| Termination | Quick Connect |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.08 | |
Description
General part information
93114
8 Ohms General Purpose Speaker 250 Hz ~ 7 kHz Top Round, Square Frame
