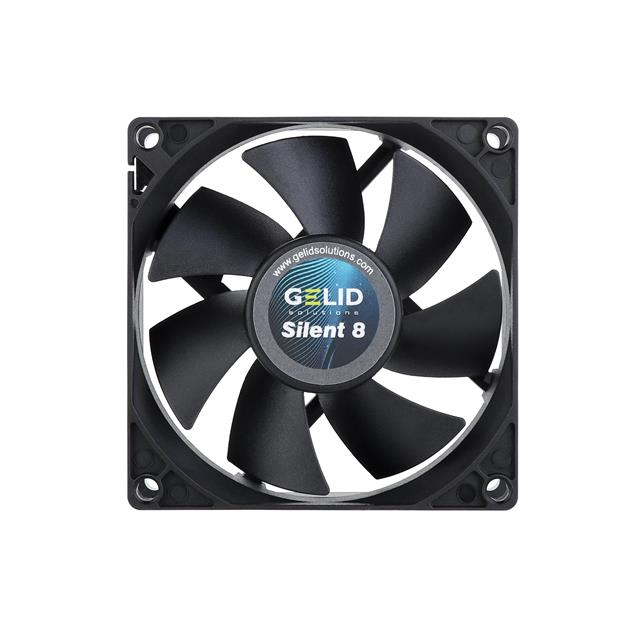

FN-PX08-21
ActiveGelid Solutions LLC
SILENT 8 PWM - BLACK
Deep-Dive with AI
Search across all available documentation for this part.
FN-PX08-21
ActiveGelid Solutions LLC
SILENT 8 PWM - BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN-PX08-21 |
|---|---|
| Air Flow | 0.58 m³/min |
| Air Flow | 20.7 CFM |
| Bearing Type | Hydrodynamic |
| Fan Type | Tubeaxial |
| Noise | 18.9 dB(A) |
| Power (Watts) | 2.16 W |
| RPM | 1600 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.041 in H2O |
| Static Pressure | 10.3 Pa |
| Termination | 3 Position Rectangular Connector |
| Voltage - Rated | 12 VDC |
| Weight | 0.15 lbs |
| Weight | 68.04 g |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 9.18 | |
| 10 | $ 8.19 | |||
| 25 | $ 7.82 | |||
| 50 | $ 7.55 | |||
| 100 | $ 7.30 | |||
| 250 | $ 6.97 | |||
| 500 | $ 6.73 | |||
Description
General part information
FN-PX08-21
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Hydrodynamic 20.7 CFM (0.580m³/min) 3 Position Rectangular Connector
Documents
Technical documentation and resources
No documents available
