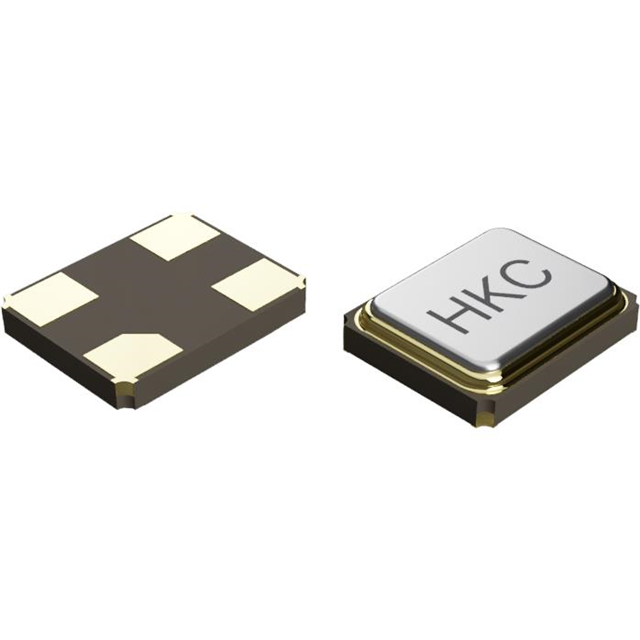

2016M2600AN4L-CT
ActiveHKC
CRYSTAL 26MHZ 10PPM 15PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2016M2600AN4L-CT
ActiveHKC
CRYSTAL 26MHZ 10PPM 15PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016M2600AN4L-CT |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 26 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Load Capacitance | 15 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.45 | |
| 100 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.32 | |||
Description
General part information
2016M2600AN4L-CT
26 MHz ±10ppm Crystal 15pF 100 Ohms 4-SMD, No Lead
