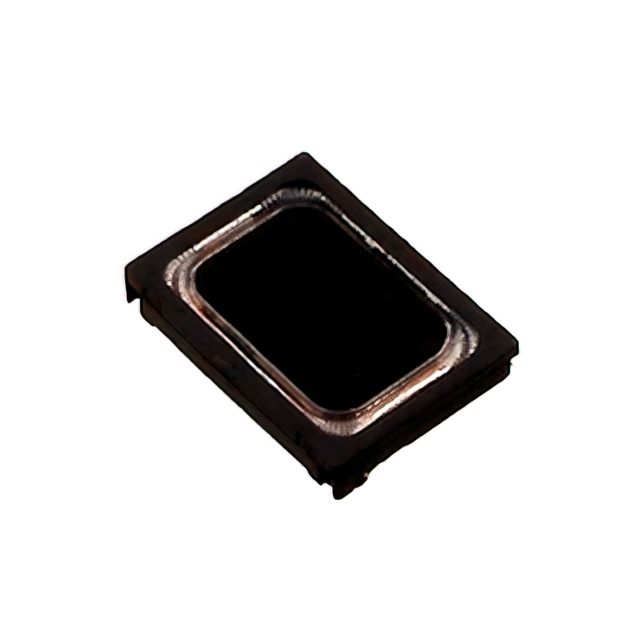

CR1813L025UN8WPGDA2
ActiveSeltech
SPEAKER 8OHM 700MW TOP PORT 75DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR1813L025UN8WPGDA2
ActiveSeltech
SPEAKER 8OHM 700MW TOP PORT 75DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR1813L025UN8WPGDA2 |
|---|---|
| Efficiency - Testing | 1W/1m |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 800 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 800 Hz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Impedance | 8 Ohms |
| Ingress Protection | IPX6 |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Spring Contacts |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.25 | |
| 20 | $ 4.00 | |||
| 100 | $ 3.75 | |||
Description
General part information
CR1813L025UN8WPGDA2
8 Ohms General Purpose Speaker 700 mW 800 Hz ~ 20 kHz Top Rectangular
