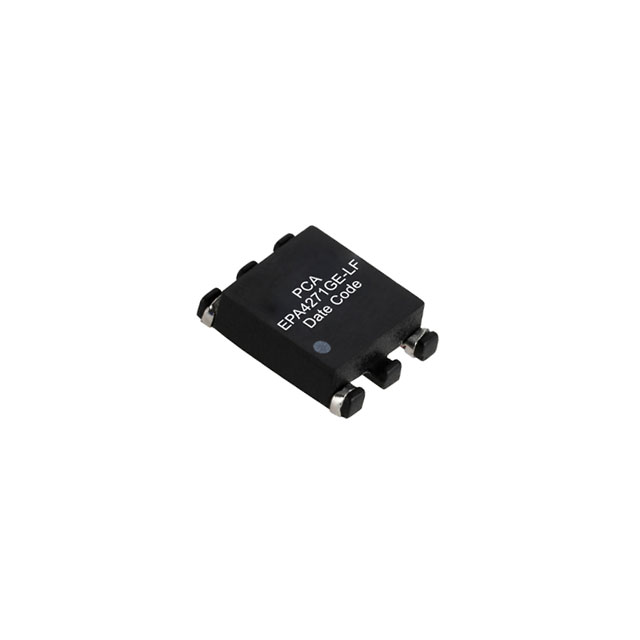

EPA4271GE-LF
ActivePCA Electronics, Inc.
ISOLATED GATE DRIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPA4271GE-LF
ActivePCA Electronics, Inc.
ISOLATED GATE DRIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPA4271GE-LF |
|---|---|
| ET (Volt-Time) | 9.7 VµS |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Height - Seated (Max) [Max] [z] | 2.49 mm |
| Inductance | 785 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 6.73 mm |
| Size / Dimension [x] | 0.265 in |
| Size / Dimension [y] | 8.64 mm |
| Size / Dimension [y] | 0.34 in |
| Transformer Type | Gate Drive |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 2.49 | |
| 5 | $ 2.29 | |||
| 10 | $ 1.86 | |||
| 25 | $ 1.50 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.38 | |||
| 1200 | $ 0.98 | |||
Description
General part information
EPA4271GE-LF
785µH Gate Drive Pulse Transformer 1:1 Surface Mount
