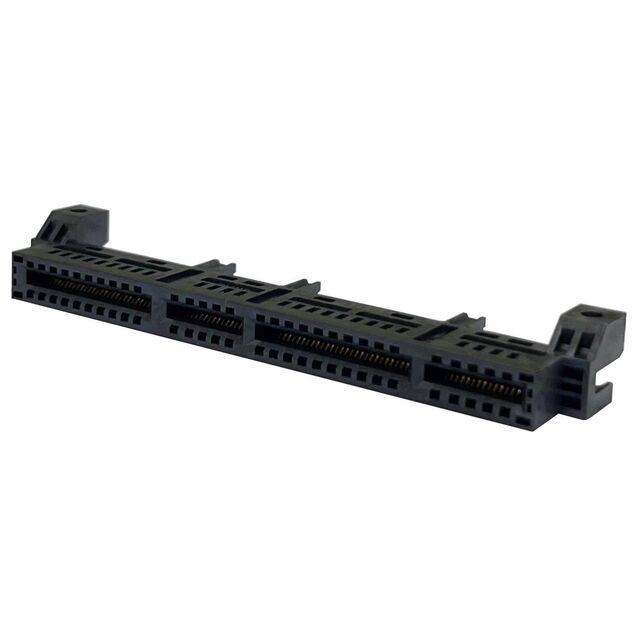

70680-J845
ActiveBellWether
CONN EDGE DUAL FML 168POS 0.024
Deep-Dive with AI
Search across all available documentation for this part.
70680-J845
ActiveBellWether
CONN EDGE DUAL FML 168POS 0.024
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 70680-J845 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 168 |
| Number of Positions/Bay/Row [x] | 14, 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 4.95 | |
| 50 | $ 4.46 | |||
| 100 | $ 4.01 | |||
Description
General part information
70680-J845
168 Position Female Connector Non Specified - Dual Edge Gold Black
Documents
Technical documentation and resources
No documents available
