JANTXV1N3890R
ActiveMicrochip Technology
DIODE GEN PURP 100V 12A DO203AA
Deep-Dive with AI
Search across all available documentation for this part.
JANTXV1N3890R
ActiveMicrochip Technology
DIODE GEN PURP 100V 12A DO203AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JANTXV1N3890R |
|---|---|
| Capacitance @ Vr, F | 115 pF |
| Current - Average Rectified (Io) | 12 A |
| Grade | Military |
| Mounting Type | Stud Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | Stud, DO-203AA, DO-4 |
| Qualification | MIL-PRF-19500/304 |
| Reverse Recovery Time (trr) | 150 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-203AA |
| Supplier Device Package | DO-4 |
| Technology | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 411.05 | |
Description
General part information
JANTXV1N3890R

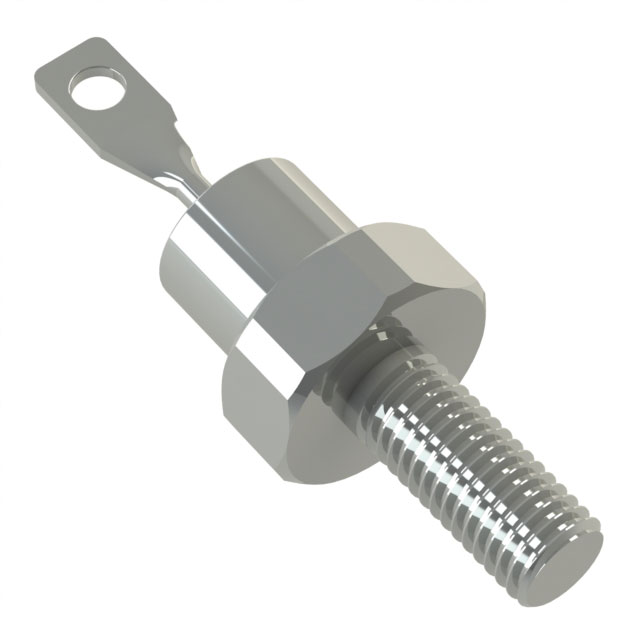

Diode 100 V 12A Stud Mount DO-203AA (DO-4)
Documents
Technical documentation and resources
No documents available
