Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0042 |
|---|---|
| Current Rating (Amps) | 490 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size [Max] | 10 |
| Line Side Wire/Stud Size [Min] | 4/0 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | CU/AL |
| Load Side Wire/Stud Size [Max] | 10 |
| Load Side Wire/Stud Size [Min] | 4/0 |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 24 | $ 29.89 | |
| 480 | $ 27.80 | |||
Description
General part information
VC05-0042

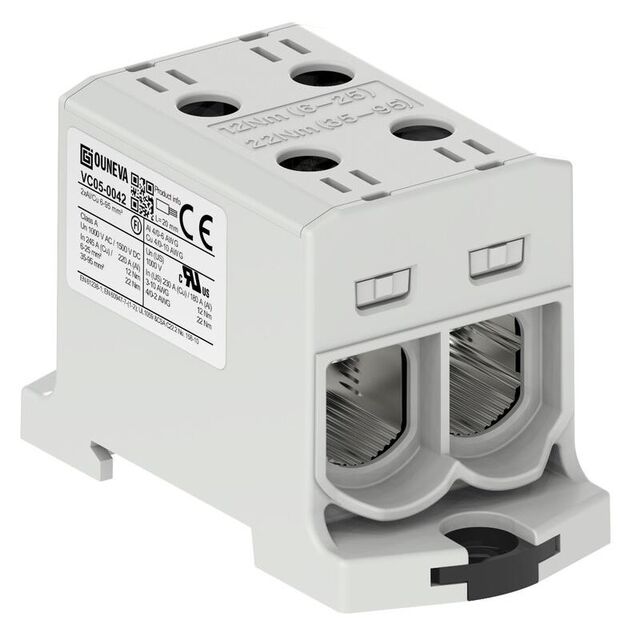

2 Pole Power Distribution Block 490 A 1500 V
