MOT-I-81610-157
ActiveISL Products International

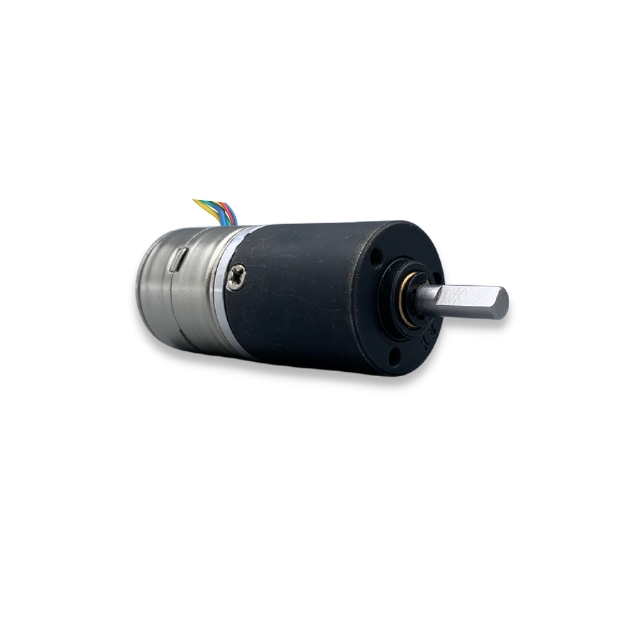

PM STEPPER MOTOR W/ GEARBOX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-I-81610-157
ActiveISL Products International
PM STEPPER MOTOR W/ GEARBOX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81610-157 |
|---|---|
| Coil Type | Bipolar |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Length - Shaft and Bearing [x] | 0.551 in |
| Length - Shaft and Bearing [x] | 14 mm |
| Mounting Hole Spacing | 15 mm |
| Mounting Hole Spacing | 0.591 in |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 20 mm |
| Size / Dimension [diameter] | 0.787 in |
| Step Angle | 0.115 ° |
| Steps per Revolution | 3130.5 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 392.26 mNm |
| Torque - Holding (oz-in / mNm) | 55.54 oz-in |
| Type | Permanent Magnet |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 73.25 | |
| 100 | $ 61.10 | |||
Description
General part information
MOT-I-81610-157
Bipolar Stepper Motor Permanent Magnet Frame Size 3130.5 Step 12VDC
