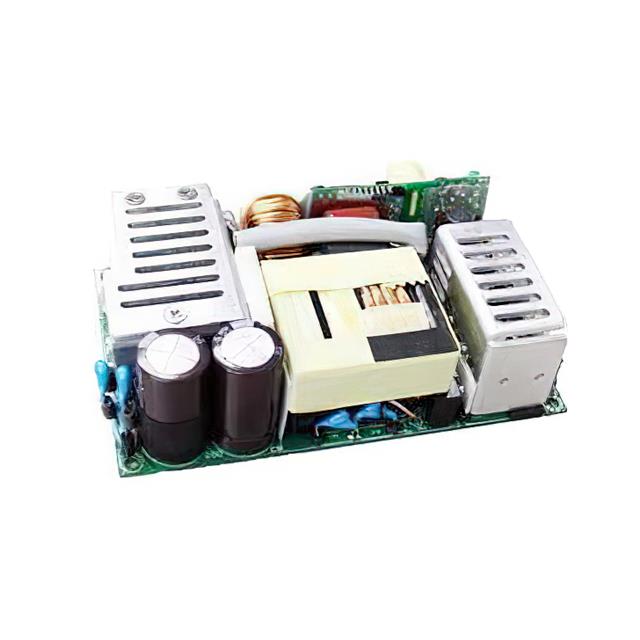

HDM500O-124
ActiveDigital Power Corporation
AC/DC CONVERTER 24V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDM500O-124
ActiveDigital Power Corporation
AC/DC CONVERTER 24V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDM500O-124 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 20.8 A |
| Efficiency | 92 % |
| Features | PFC, Universal Input, Remote On/Off, Adjustable Output, DC Input Capable, Standby Output |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 127.8 mm |
| Size / Dimension [x] | 5.03 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 35.1 mm |
| Size / Dimension [z] | 1.38 in |
| Standard Number | 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 140.57 | |
Description
General part information
HDM500O-124
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
