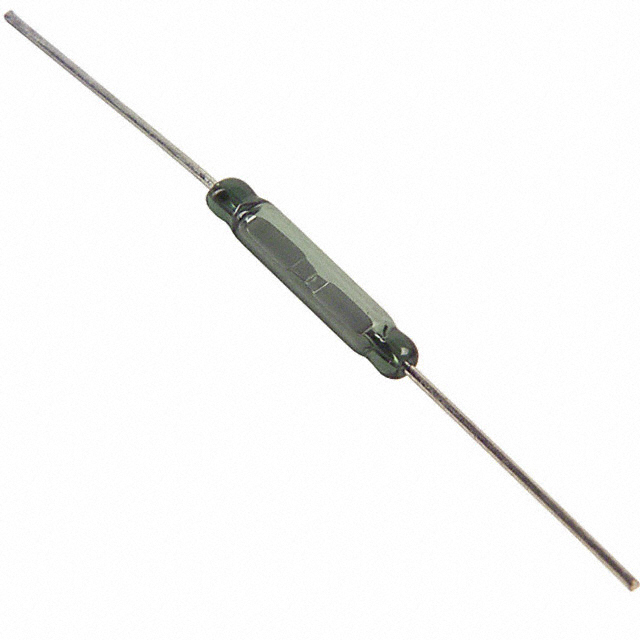

RI-25AA
ObsoleteComus International
SWITCH REED SPST-NO 1A 140V
Deep-Dive with AI
Search across all available documentation for this part.
RI-25AA
ObsoleteComus International
SWITCH REED SPST-NO 1A 140V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-25AA |
|---|---|
| Capacitance | 0.3 pF |
| Circuit | SPST-NO |
| Current - Carry | 1.75 A |
| Current - Switching | 1 A |
| Length - Overall [x] | 46 mm |
| Length - Overall [x] | 1.811 in |
| Mounting Type | Through Hole |
| Operate Range [Max] | 23 AT |
| Operate Range [Min] | 14 AT |
| Operate Time | 0.25 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Power - Rated | 15 W |
| Release Range [Max] | 17.5 AT |
| Release Range [Min] | 7.5 AT |
| Release Time | 0.03 ms |
| Size - Body [diameter] | 2.54 mm |
| Size - Body [diameter] | 0.1 in |
| Size - Body [x] | 14.5 mm |
| Size - Body [x] | 0.57 in |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RI-25AA
Glass Body Reed Switch SPST-NO 14 ~ 23AT Operate Range 15W 1A (AC/DC) 140 V Through Hole
