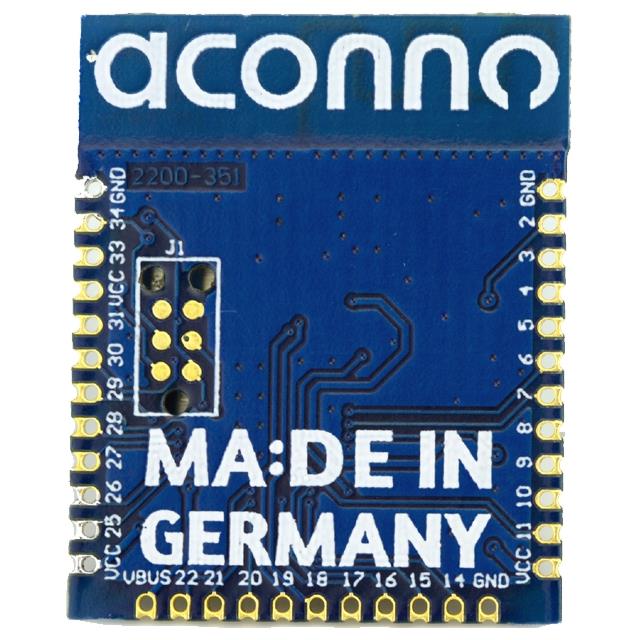

ACN52840
ActiveAconno
RF TXRX MOD BT Y BLE TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACN52840
ActiveAconno
RF TXRX MOD BT Y BLE TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACN52840 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 5.2 mA |
| Current - Transmitting | 14.8 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 256 kB, 1 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.0 |
| Sensitivity | -92 dBm |
| Serial Interfaces | QSPI, SPI, UART, I2C, I2S |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 15.89 | |
| 10 | $ 15.57 | |||
| 25 | $ 15.26 | |||
| 50 | $ 14.96 | |||
| 150 | $ 14.66 | |||
Description
General part information
ACN52840
Bluetooth Low Energy (BLE) Bluetooth v5.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
Documents
Technical documentation and resources
