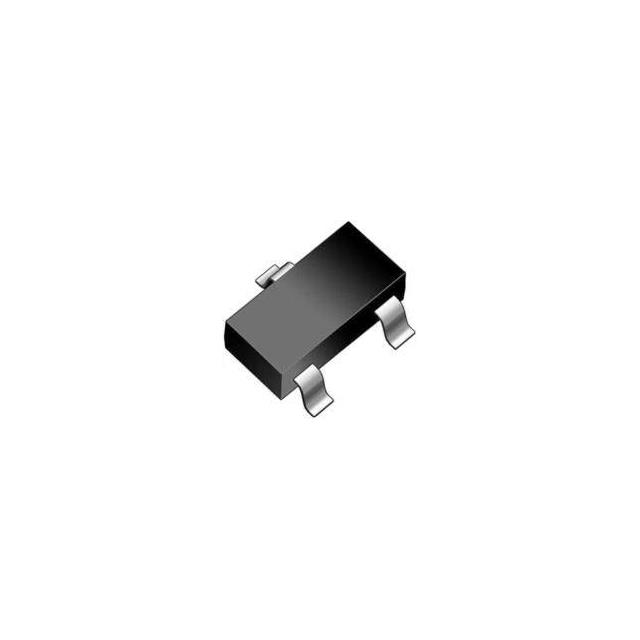

MMBZ5232B
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT ZENER DIODE
Deep-Dive with AI
Search across all available documentation for this part.
MMBZ5232B
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT ZENER DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMBZ5232B |
|---|---|
| Impedance (Max) (Zzt) [Max] | 11 Ohms |
| Mounting Type | Surface Mount |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOT-23 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 57.60 | |
| 100 | $ 48.00 | |||
| 1000 | $ 38.40 | |||
Description
General part information
MMBZ5232B
Zener Diode 5.6 V 500 mW ±5% Surface Mount SOT-23
Documents
Technical documentation and resources
No documents available
