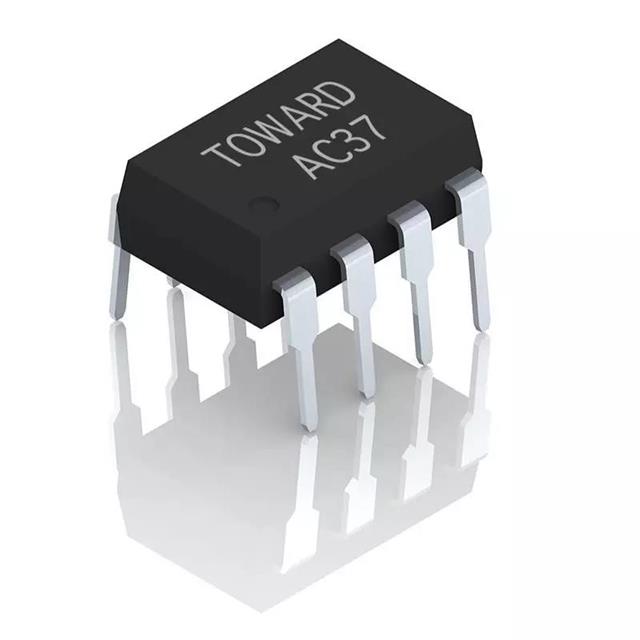

AC37
ActiveBright Toward Industrial Co., Ltd.
DIP-8, 60V / 550MA, SSR RELAY SP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC37
ActiveBright Toward Industrial Co., Ltd.
DIP-8, 60V / 550MA, SSR RELAY SP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC37 |
|---|---|
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 500 mA |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 1.6 Ohms |
| Output Type | DC, AC |
| Package / Case | 0.3 in |
| Package / Case | 8-DIP |
| Package / Case | 7.62 mm |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.56 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.60 | |||
| 50 | $ 4.42 | |||
| 100 | $ 4.24 | |||
| 250 | $ 4.02 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.70 | |||
Description
General part information
AC37
Solid State SPST-NO (1 Form A) x 2 8-DIP (0.300", 7.62mm)
