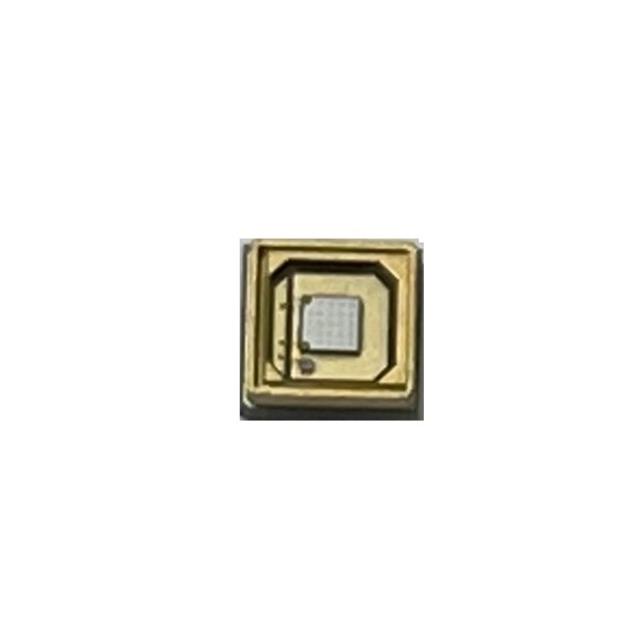

QLUV07J5GEP
ActiveQuelighting Corp
3535,UV,QUARTZ LENS,405NM,120
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QLUV07J5GEP
ActiveQuelighting Corp
3535,UV,QUARTZ LENS,405NM,120
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QLUV07J5GEP |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V, 3.3 V |
| Wavelength | 405 nm |
| Wavelength [Max] | 410 nm |
| Wavelength [Min] | 400 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.44 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.16 | |||
| Digi-Reel® | 1 | $ 2.44 | ||
| 10 | $ 1.59 | |||
| 100 | $ 1.16 | |||
| Tape & Reel (TR) | 500 | $ 0.99 | ||
| 1000 | $ 0.94 | |||
| 1500 | $ 0.91 | |||
| 2500 | $ 0.88 | |||
| 3500 | $ 0.86 | |||
| 5000 | $ 0.85 | |||
Description
General part information
QLUV07J5GEP
Ultraviolet (UV) Emitter 405nm (400nm ~ 410nm) 3.3V, 3.6V 1.5A 120° 1414 (3535 Metric)
