RH103901002GNL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RH103901002GNL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RH103901002GNL |
|---|---|
| Actual Diameter [diameter] | 3.2 mm |
| Actual Diameter [diameter] | 0.126 in |
| Body Color | Gold |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack, Dual |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | White, Red |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 6 Contacts, 2 Sets of 2 Conductors |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

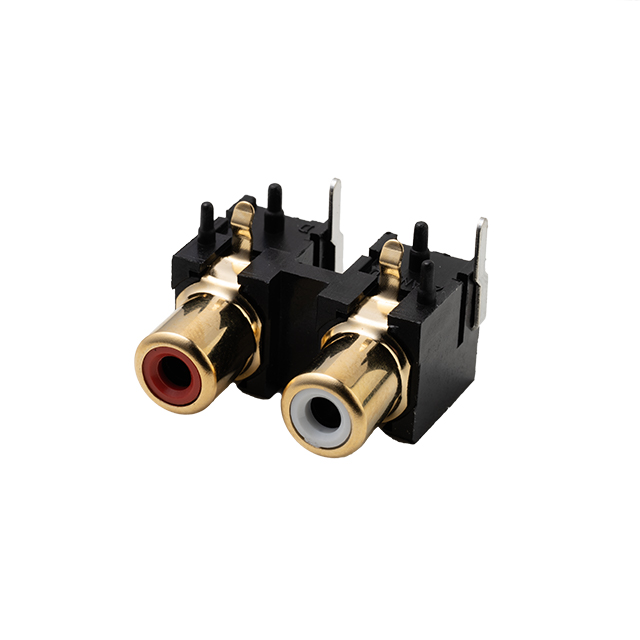

RH103901002GNL
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack, Dual Mono Connector Solder
