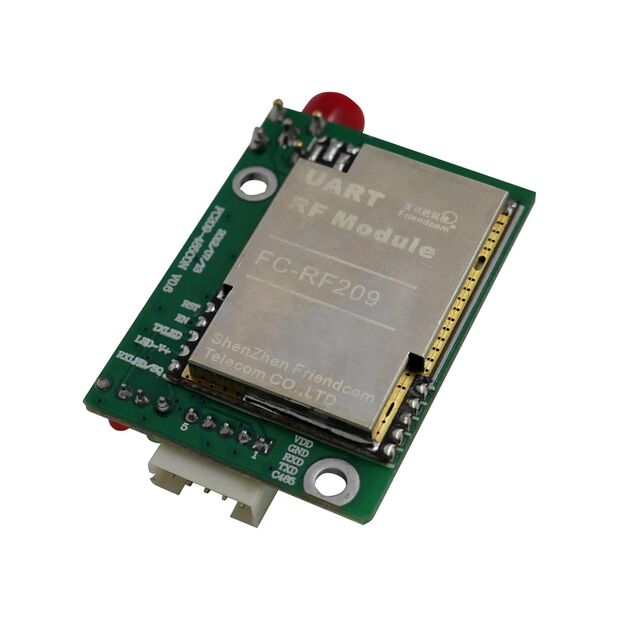

FC-RF209
ActiveFriendcom Wireless
UART RF DATA RADIO MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC-RF209
ActiveFriendcom Wireless
UART RF DATA RADIO MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FC-RF209 |
|---|---|
| Current - Receiving | 27 mA |
| Current - Transmitting [Max] | 320 mA |
| Current - Transmitting [Min] | 120 mA |
| Data Rate | 38400 bps |
| Frequency | 868 MHz, 915 MHz, 433 MHz |
| Modulation | 2FSK |
| Mounting Type | Surface Mount |
| Power - Output | 27 dBm |
| Protocol | RC232 |
| RF Family/Standard | Amazon Sidewalk, Wireless M-Bus, 802.15.4, Wi-SUN NWP, 6LoWPAN |
| Sensitivity | -110 dBm |
| Serial Interfaces | RS485, UART |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 18.99 | |
| 10 | $ 15.95 | |||
| 25 | $ 14.62 | |||
| 50 | $ 13.67 | |||
| 100 | $ 12.72 | |||
Description
General part information
FC-RF209
802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk RC232 Transceiver Module 433MHz, 868MHz, 915MHz Surface Mount
