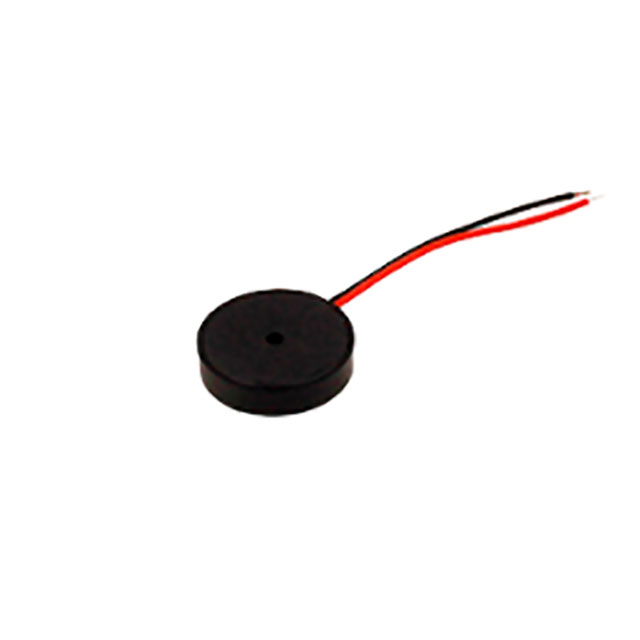

CC13P025W15-4800
ActiveSeltech
SPEAKR 8OHM 500 MA TOP PORT 72DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC13P025W15-4800
ActiveSeltech
SPEAKR 8OHM 500 MA TOP PORT 72DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC13P025W15-4800 |
|---|---|
| Efficiency - dBA | 72 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 950 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 950 Hz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 700 mA |
| Power - Rated | 500 mA |
| Shape | Rectangular |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.00 | |
| 5 | $ 2.90 | |||
| 10 | $ 2.80 | |||
| 20 | $ 2.30 | |||
| 100 | $ 1.90 | |||
Description
General part information
CC13P025W15-4800
8 Ohms General Purpose Speaker 500 mA 950 Hz ~ 10 kHz Top Rectangular
