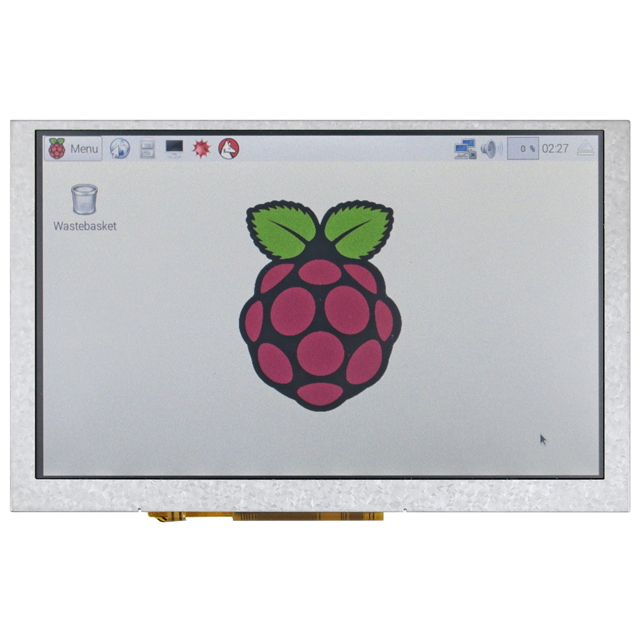

MDT0500D2SH-HDMI
ActiveMIDAS DISPLAYS
LCD DISPLAY TFT 5" 800X480
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDT0500D2SH-HDMI
ActiveMIDAS DISPLAYS
LCD DISPLAY TFT 5" 800X480
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0500D2SH-HDMI |
|---|---|
| Backlight | LED - White |
| Controller Type | TFP401 |
| Diagonal Screen Size [custom] | 127 mm |
| Diagonal Screen Size [custom] | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.05 mm |
| Dot Pitch [y] | 0.14 mm |
| Dot Pixels | WVGA |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | HDMI |
| Viewing Area [x] | 108 mm |
| Viewing Area [y] | 64.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 61.16 | |
| 10 | $ 59.46 | |||
| 30 | $ 57.85 | |||
| 50 | $ 57.08 | |||
| 100 | $ 56.29 | |||
| 200 | $ 55.53 | |||
| 300 | $ 50.33 | |||
| 500 | $ 49.67 | |||
| 1000 | $ 44.60 | |||
Description
General part information
MDT0500D2SH-HDMI
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI 5" (127.00mm) 800 x 480 (WVGA)
