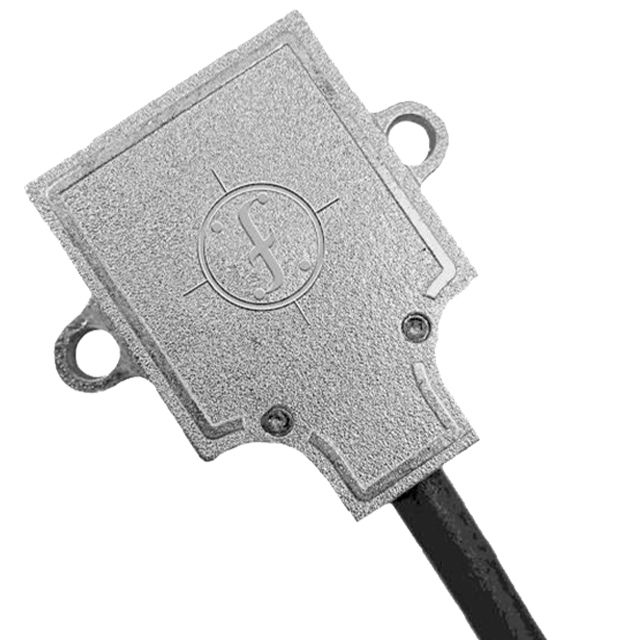

0750-3002-99
ObsoleteThe Fredericks Company
INCLINOMETER RS-485 30DEG 2AX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0750-3002-99
ObsoleteThe Fredericks Company
INCLINOMETER RS-485 30DEG 2AX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0750-3002-99 |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Bandwidth | 18 Hz |
| Interface | RS-485 |
| Measuring Range [Max] | 30 ° |
| Measuring Range [Min] | -30 ° |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | RS-485 |
| Package / Case | Module |
| Sensitivity | 0.03 °/LSB |
| Voltage Rating [Max] | 35 V |
| Voltage Rating [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0750-3002-99
Sensor Inclinometer ±30° X, Y Axis 18Hz Bandwidth Module
Documents
Technical documentation and resources
