Q-3B03M0005084I
ActiveAmphenol Custom Cable

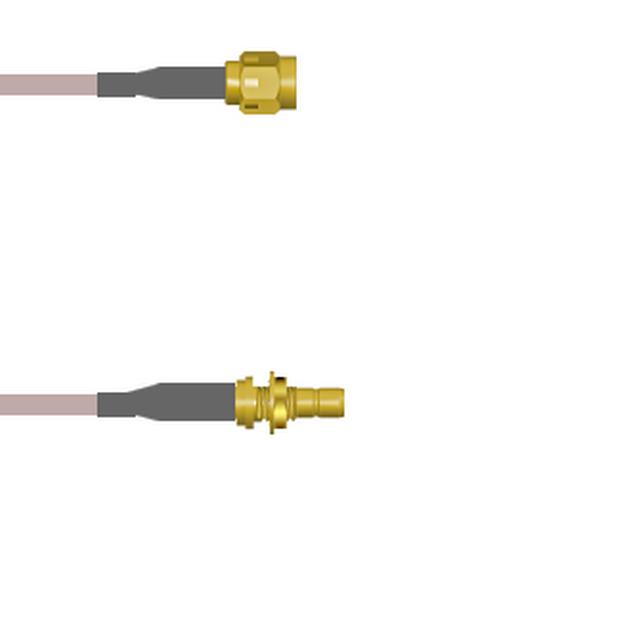

COAX CABLE SMA TO SMB 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3B03M0005084I
ActiveAmphenol Custom Cable
COAX CABLE SMA TO SMB 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3B03M0005084I |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 114.05 | |
| 25 | $ 111.80 | |||
| 50 | $ 109.56 | |||
| 100 | $ 107.32 | |||
| 250 | $ 105.07 | |||
Description
General part information
Q-3B03M0005084I
Cable Assembly Coaxial SMA to SMB RG-316 84.0" (2.1m) 7.0'
Documents
Technical documentation and resources
No documents available
