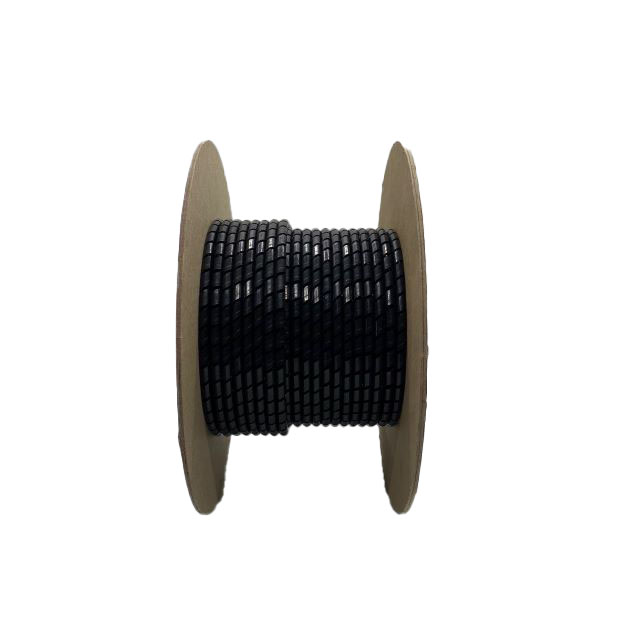

HT 7/8 N-B
ActiveMM Newman Corporation
SPIRAL WRAP 0.811" X 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT 7/8 N-B
ActiveMM Newman Corporation
SPIRAL WRAP 0.811" X 100' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HT 7/8 N-B |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 6 in |
| Diameter - Inside, Expanded [diameter] | 152.4 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.811 in |
| Diameter - Inside, Non-Expanded [diameter] | 20.6 mm |
| Diameter - Outside, Non-Expanded [diameter] | 22.23 mm |
| Diameter - Outside, Non-Expanded [diameter] | 0.875 " |
| Environment Protection | UV Resistant |
| Features | Chemical Resistant, Self Extinguishing, Solvent Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Material | Nylon |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Spiral Wrap |
| Type Attributes | Harness |
| Wall Thickness | 0.032 in |
| Wall Thickness | 0.81 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 450.00 | |
| 10 | $ 411.34 | |||
Description
General part information
HT 7/8 N-B
Spiral Wrap 0.875" (22.23mm) X 100' (30.48m) Black
