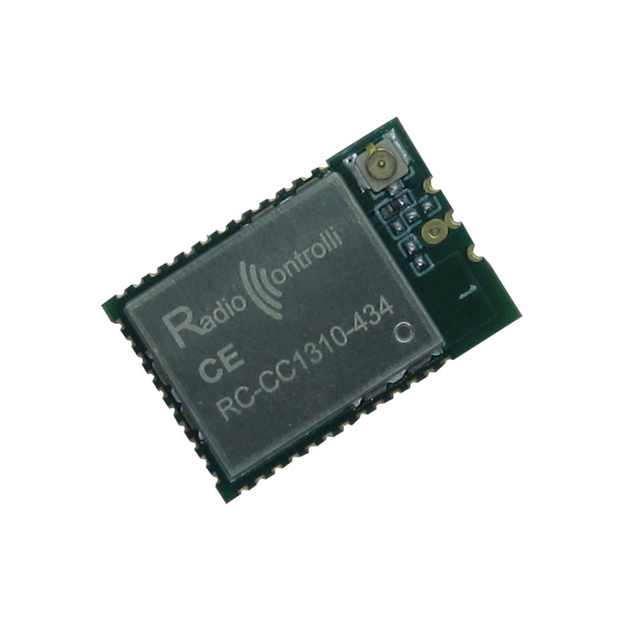

RC-CC1310-434
ActiveRadioControlli
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC-CC1310-434
ActiveRadioControlli
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-CC1310-434 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 5.5 mA |
| Current - Transmitting [Max] | 23.5 mA |
| Current - Transmitting [Min] | 13.4 mA |
| Data Rate | 4 Mbps |
| Frequency | 434 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 39-SMD Module |
| Power - Output | 14 dBm |
| Protocol | 6LoWPAN |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -124 dBm |
| Utilized IC / Part | CC1310F128 |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4 | $ 23.00 | |
| 12 | $ 15.00 | |||
| 20 | $ 12.00 | |||
Description
General part information
RC-CC1310-434
802.15.4 6LoWPAN Transceiver Module 434MHz Antenna Not Included, U.FL Surface Mount
