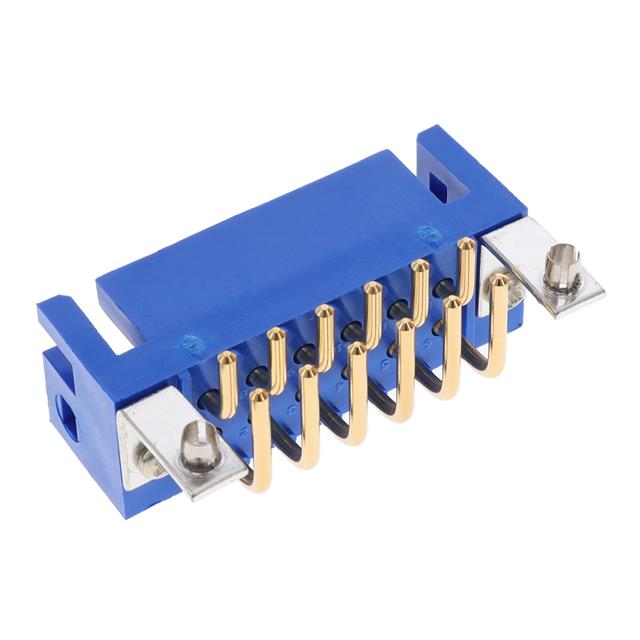

PLB12M4BN0A1/AA
ActiveAmphenol Positronic
RECT PWR CONN, R/A PLUG, 12POS, THT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
PLB12M4BN0A1/AA
ActiveAmphenol Positronic
RECT PWR CONN, R/A PLUG, 12POS, THT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLB12M4BN0A1/AA |
|---|---|
| Color | Blue |
| Connector Style | Power |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 25 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PLB12M4BN0A1/AA
12 Connector Header, Male Pins Through Hole, Right Angle Blue Power
