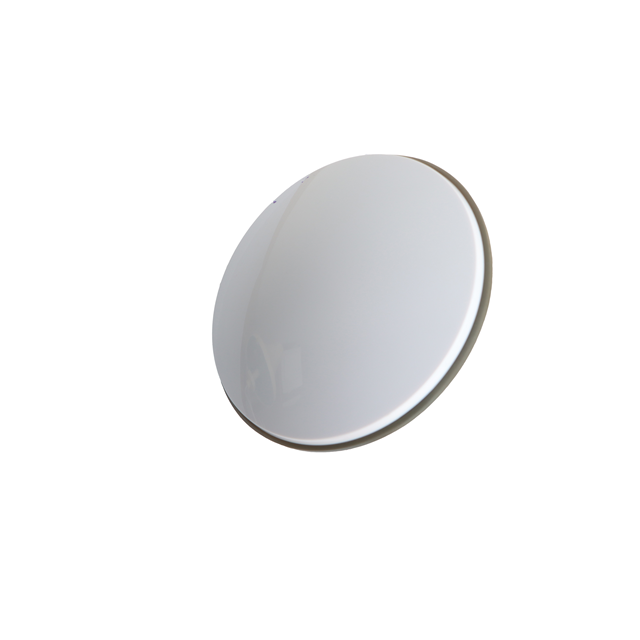

AN_GPS_P228B
ActiveSuzhou Maswell Communication Technology Co. Ltd
GNSS SURVYING ANTNNA ENTRY LEVEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN_GPS_P228B
ActiveSuzhou Maswell Communication Technology Co. Ltd
GNSS SURVYING ANTNNA ENTRY LEVEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN_GPS_P228B |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, GNSS, Galileo, GLONASS |
| Features | LNA |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.576 GHz |
| Frequency Range [Min] | 1.574 GHz |
| Gain | 5 dBi |
| Height (Max) | 61.5 mm |
| Height (Max) [Max] [z] | 2.421 in |
| Ingress Protection | IP67 |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | TNC |
| VSWR [Max] | 2 |
| VSWR [Min] | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 202.48 | |
| 10 | $ 189.83 | |||
| 25 | $ 180.34 | |||
Description
General part information
AN_GPS_P228B
RF ANTENNA Galileo, GLONASS, GNSS, GPS Dome TNC Screw Mount
